Cast film extrusion line consist of a lab precise single screw extruder, a molding system(die), a film casting, haul-off & winding machine and a SIEMENS PLC Touching Screen Control System.
It not only has wide range of technology adjustment (including speed, temperature, pressure, thickness, etc.), but also has a lot of functions such as real-time parameter acquistion, graphic displaying, recording and storing. It is an ideal tool for research institute to develop new material formula and film shaping technology.
Parameter
| Model | OLT-432(Single layer) | OLT-432-2(Double layers) | OLT-432-3(Three layers) |
| Screw diameter (mm) | 25 | 25 | 25 |
| L/D | 1:33 | 1:33 | 1:33 |
| Screw speed (Speed Adjustable) | 0~95rpm | 0~95rpm | 0~95rpm |
| Main Motor power (KW) | 2.2 | 2.2*2 | 2.2*3 |
| Die | Hanger Type | Hanger Type | Hanger Type |
| Die lip width | 300 or cunstomzied | 300 or cunstomzied | 300 or cunstomzied |
| Volume(H*W*D)mm | 2500*800*1700 | 2600*960*2100 | 3200*1200*2100 |
| Power Supply | 3∮, AC380V | ||
| Special models can be desighed according to cunstomers’ requirements | |||

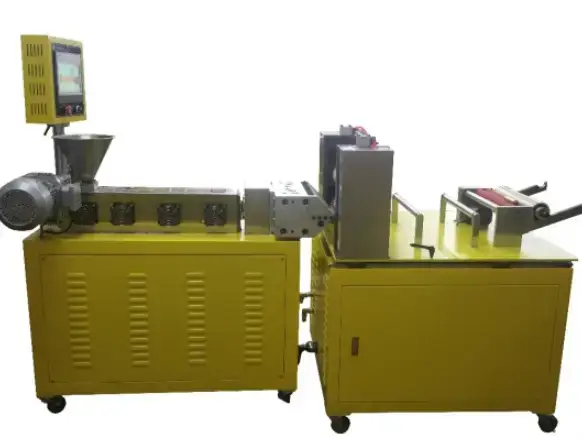

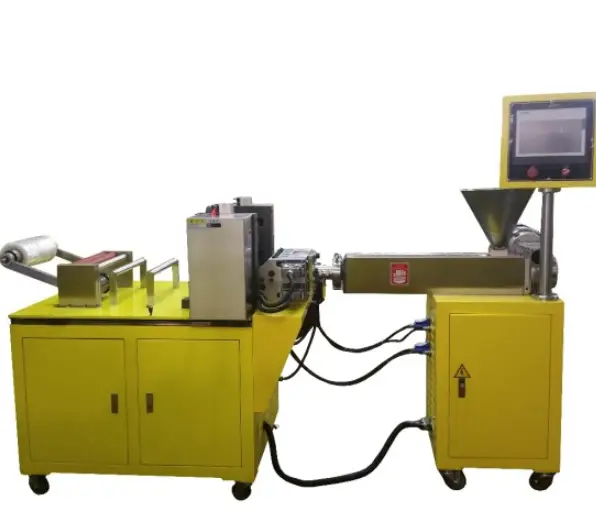

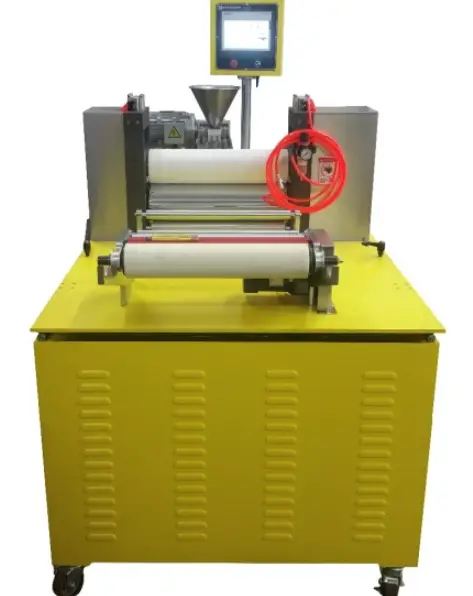

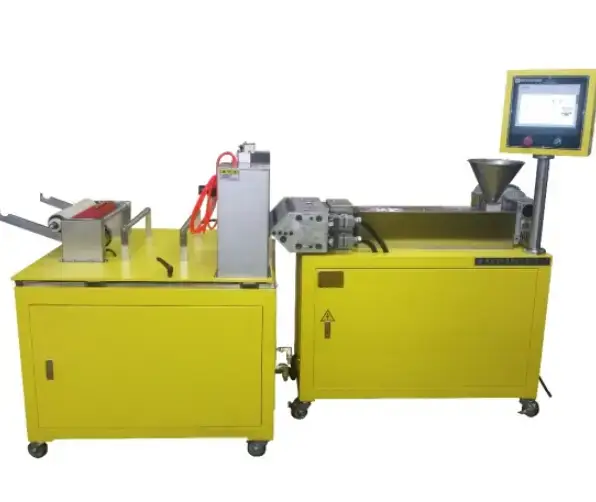

Detailed Image
